cia402_drive.h File Reference

#include <chrono>
#include <cstdint>
#include <functional>
#include <list>
#include <map>
#include <mutex>
#include <string>
#include <unordered_map>
#include <variant>
#include <vector>
#include "dictionary_symbols.h"
#include "virtual_parameter.h"

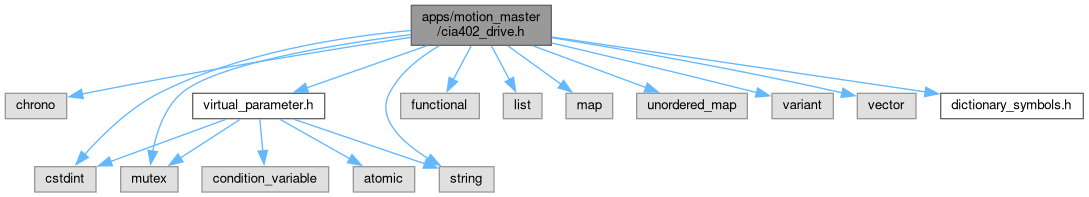

Include dependency graph for cia402_drive.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ChirpSignalOptions
	Defines the parameters used to execute a chirp signal on a device. More...
class	Cia402Drive

Macros
#define	CIA402_STATUS_WORD_MASQ_A   0x6fu
#define	CIA402_STATUS_WORD_MASQ_B   0x4fu
#define	CIA402_STATUS_WORD_MASQ_WARN   0x80u
#define	CIA402_STATUS_NOT_READY   0x00u /* masq B */
#define	CIA402_STATUS_SWITCH_ON_DISABLED   0x40u /* masq B */
#define	CIA402_STATUS_READY_SWITCH_ON   0x21u
#define	CIA402_STATUS_SWITCHED_ON   0x23u
#define	CIA402_STATUS_OP_ENABLED   0x27u
#define	CIA402_STATUS_QUICK_STOP_ACTIVE   0x07u
#define	CIA402_STATUS_FAULT_REACTION_ACTIVE   0x0fu /* masq B */
#define	CIA402_STATUS_FAULT   0x08u /* masq B */
#define	CIA402_STATUS_INTERNAL_LIMIT_REACHED   0x0800u
#define	CIA402_CONTROL_BIT_ENABLE_OP   0x08u
#define	CIA402_CONTROL_BIT_QUICK_STOP   0x04u
#define	CIA402_CONTROL_BIT_ENABLE_VOLTAGE   0x02u
#define	CIA402_CONTROL_BIT_SWITCH_ON   0x01u
#define	CIA402_CONTROL_BIT_FAULT_RESET   0x80u
#define	FAULT_RESET_TIMEOUT_ATTEMPTS   2000

Macro Definition Documentation

CIA402_CONTROL_BIT_ENABLE_OP

#define CIA402_CONTROL_BIT_ENABLE_OP   0x08u

CIA402_CONTROL_BIT_ENABLE_VOLTAGE

#define CIA402_CONTROL_BIT_ENABLE_VOLTAGE   0x02u

CIA402_CONTROL_BIT_FAULT_RESET

#define CIA402_CONTROL_BIT_FAULT_RESET   0x80u

CIA402_CONTROL_BIT_QUICK_STOP

#define CIA402_CONTROL_BIT_QUICK_STOP   0x04u

CIA402_CONTROL_BIT_SWITCH_ON

#define CIA402_CONTROL_BIT_SWITCH_ON   0x01u

CIA402_STATUS_FAULT

#define CIA402_STATUS_FAULT   0x08u /* masq B */

CIA402_STATUS_FAULT_REACTION_ACTIVE

#define CIA402_STATUS_FAULT_REACTION_ACTIVE   0x0fu /* masq B */

CIA402_STATUS_INTERNAL_LIMIT_REACHED

#define CIA402_STATUS_INTERNAL_LIMIT_REACHED   0x0800u

CIA402_STATUS_NOT_READY

#define CIA402_STATUS_NOT_READY   0x00u /* masq B */

CIA402_STATUS_OP_ENABLED

#define CIA402_STATUS_OP_ENABLED   0x27u

CIA402_STATUS_QUICK_STOP_ACTIVE

#define CIA402_STATUS_QUICK_STOP_ACTIVE   0x07u

CIA402_STATUS_READY_SWITCH_ON

#define CIA402_STATUS_READY_SWITCH_ON   0x21u

CIA402_STATUS_SWITCH_ON_DISABLED

#define CIA402_STATUS_SWITCH_ON_DISABLED   0x40u /* masq B */

CIA402_STATUS_SWITCHED_ON

#define CIA402_STATUS_SWITCHED_ON   0x23u

CIA402_STATUS_WORD_MASQ_A

#define CIA402_STATUS_WORD_MASQ_A   0x6fu

CIA402_STATUS_WORD_MASQ_B

#define CIA402_STATUS_WORD_MASQ_B   0x4fu

CIA402_STATUS_WORD_MASQ_WARN

#define CIA402_STATUS_WORD_MASQ_WARN   0x80u

FAULT_RESET_TIMEOUT_ATTEMPTS

#define FAULT_RESET_TIMEOUT_ATTEMPTS   2000
