ethernet_client.h File Reference

#include <boost/asio.hpp>
#include <chrono>
#include <string>
#include "common.h"

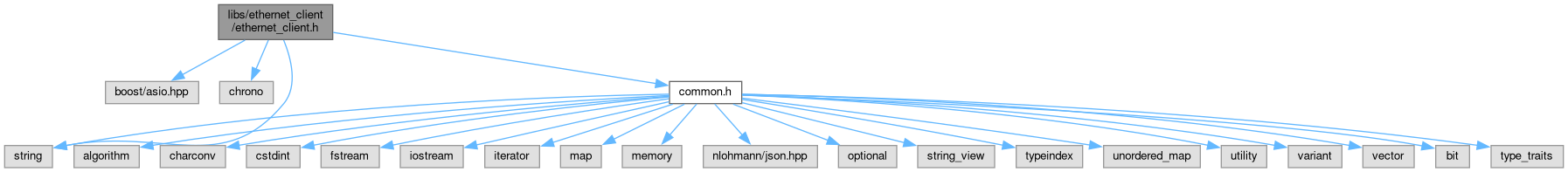

Include dependency graph for ethernet_client.h:

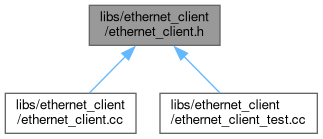

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	EthernetMessage
	Structure representing a parsed Ethernet response message. More...
class	EthernetDevice
	Handles TCP communication with SOMANET devices over Ethernet. More...

Enumerations
enum class	EthernetMessageType : uint8_t {   SDO_READ = 0x01 , SDO_WRITE = 0x02 , PDO_RXTX_FRAME , PDO_CONTROL = 0x04 ,   PDO_MAP = 0x05 , FIRMWARE_UPDATE = 0x0B , FILE_READ = 0x0C , FILE_WRITE = 0x0D ,   STATE_CONTROL , STATE_READ = 0x0F , PARAM_FULL_LIST = 0x13 , SERVER_INFO = 0x20 }
	Enumeration of Ethernet message types used in the protocol. More...
enum class	EthernetMessageStatus : uint8_t {   OK = 0x00 , FIRST = 0x80 , MIDDLE = 0xC0 , LAST = 0x40 ,   ERR = 0x28 }
	Represents the status of an Ethernet message during transmission or processing. More...
enum class	EthernetSqiReplyStatus : uint8_t { BSY = 0x28 , ACK = 0x58 , ERR = 0x63 }
	Enum class representing the status codes for an Ethernet SQI reply. More...

Functions
EthernetMessage	parseEthernetMessage (const std::vector< uint8_t > &buffer)
	Parses a raw Ethernet message buffer into a structured EthernetMessage. More...
std::vector< uint8_t >	serializeEthernetMessage (const EthernetMessage &message)
	Serializes an EthernetMessage object into a byte buffer. More...

Enumeration Type Documentation

EthernetMessageStatus

enum class EthernetMessageStatus : uint8_t

strong

Represents the status of an Ethernet message during transmission or processing.

This enum is used to indicate whether a message is complete, part of a segmented sequence, or contains an error. The values are bit flags that may be interpreted by the protocol handler.

Enumerator
OK	Message is complete and valid.
FIRST	First segment of a multi-part message.
MIDDLE	Middle segment of a multi-part message.
LAST	Last segment of a multi-part message.
ERR	Message contains an error or failed validation.

EthernetMessageType

enum class EthernetMessageType : uint8_t

strong

Enumeration of Ethernet message types used in the protocol.

Each message type corresponds to a specific operation or request within the Ethernet communication protocol.

Note

This is specified in the "Ethernet interface definition" document.

Enumerator
SDO_READ	Read a Service Data Object (SDO) value.
SDO_WRITE	Write a value to a Service Data Object (SDO).
PDO_RXTX_FRAME	Transmit or receive a Process Data Object (PDO) frame.
PDO_CONTROL	Control or configure PDO behavior.
PDO_MAP	Map PDO entries or configurations.
FIRMWARE_UPDATE	Perform firmware update operation.
FILE_READ	Read a file from the device.
FILE_WRITE	Write a file to the device.
STATE_CONTROL	Control the state of the device (e.g., INIT, PREOP).
STATE_READ	Read the current state of the device.
PARAM_FULL_LIST	Request a full list of parameters.
SERVER_INFO	Request information about the server or device.

EthernetSqiReplyStatus

enum class EthernetSqiReplyStatus : uint8_t

strong

Enum class representing the status codes for an Ethernet SQI reply.

This enum class defines the possible reply statuses returned in response to an SQI (Serial Quality Indicator) communication with a System on Chip (SoC).

Enumerator
BSY	Device is busy and cannot process the request.
ACK	Acknowledgment received.
ERR	Error occurred during processing.

Function Documentation

parseEthernetMessage()

EthernetMessage parseEthernetMessage

(

const std::vector< uint8_t > &

buffer

)

Parses a raw Ethernet message buffer into a structured EthernetMessage.

This function interprets the first 7 bytes of the buffer as the message header, extracting the type, sequence ID, status, and payload size. If the size field is greater than zero, it also extracts the payload data.

Parameters

buffer

The raw byte buffer containing the Ethernet message. Must be at least 7 bytes long to contain the header.

Returns

A structured representation of the parsed Ethernet message.

Exceptions

std::runtime_error

If the buffer is smaller than the required header size.

See also

EthernetMessage, EthernetMessageType

serializeEthernetMessage()

std::vector< uint8_t > serializeEthernetMessage

(

const EthernetMessage &

message

)

Serializes an EthernetMessage object into a byte buffer.

This function converts the provided EthernetMessage into a byte array, which can be sent over a network. The EthernetMessage type, ID, status, size, and any associated data are serialized into the buffer in a specific format expected by the receiving device.

Parameters

message

The EthernetMessage object to serialize.

Returns

A std::vector<uint8_t> containing the serialized byte buffer.

See also

EthernetMessage, EthernetMessageType
