#include <condition_variable>
#include <map>
#include <nlohmann/json.hpp>
#include <optional>
#include <set>
#include <sstream>
#include <string>
#include <typeindex>
#include <variant>
#include <vector>
#include "core/util.h"

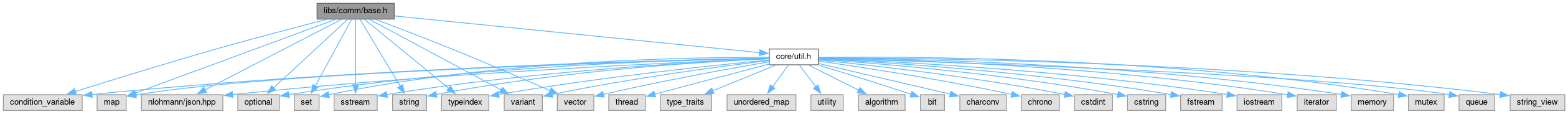

Include dependency graph for base.h:

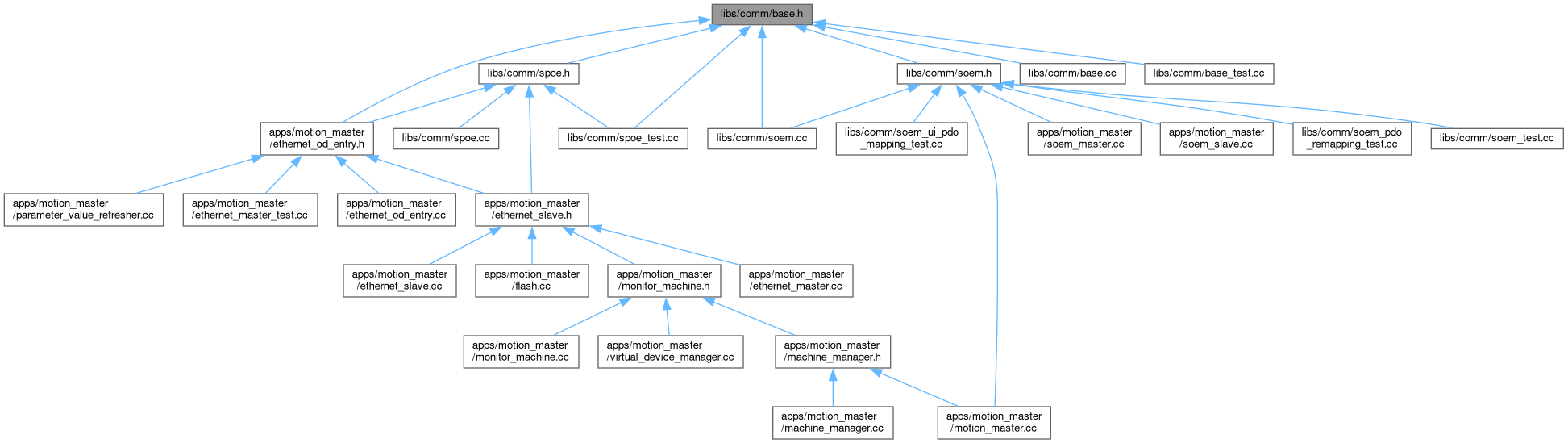

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	mm::comm::base::UiPdoMapping
	Represents the PDO mapping for RX and TX channels. More...

struct	mm::comm::base::UiConfigJson
	Top-level UI configuration JSON structure. More...

struct	mm::comm::base::PdoMappingEntry
	Represents a single PDO (Process Data Object) mapping entry. More...

struct	mm::comm::base::PdoMappings
	Represents the mapped PDO entries for a slave device. More...

struct	mm::comm::base::MappedParameterValue
	Represents a single mapped parameter value. More...

struct	mm::comm::base::MappedParameterValues
	Holds collections of mapped parameter values for RX and TX directions. More...

class	mm::comm::base::Parameter
	Represents a device parameter identified by index and subindex. More...

class	mm::comm::base::Device
	Abstract interface representing a generic device. More...

class	mm::comm::base::DeviceManager
	Manages devices and performs cyclic process data exchange. More...

class	mm::comm::base::DeviceResponseException
	Exception thrown when a device responds with an error. More...

class	mm::comm::base::DeviceParameterRefresher
	Base class for periodically refreshing a set of device parameters in a background thread. More...

struct	nlohmann::adl_serializer< mm::comm::base::ParameterValue >
	Specialization of adl_serializer for common::ParameterValue to enable nlohmann::json serialization and deserialization. More...

Namespaces
namespace	mm

namespace	mm::comm

namespace	mm::comm::base

namespace	nlohmann

Typedefs
using	mm::comm::base::ParameterValue = std::variant< bool, std::int8_t, std::int16_t, std::int32_t, std::int64_t, std::uint8_t, std::uint16_t, std::uint32_t, std::uint64_t, float, double, std::string, std::vector< std::uint8_t > >

Enumerations
enum class	mm::comm::base::EtherCATVendorID : uint32_t { mm::comm::base::SYNAPTICON = 0x000022d2 }
	Enum class representing EtherCAT vendor IDs. More...

enum class	mm::comm::base::ObjectFlags : uint16_t { mm::comm::base::None = 0x0000 , mm::comm::base::PO_RD = 0x0001 , mm::comm::base::SO_RD = 0x0002 , mm::comm::base::OP_RD = 0x0004 , mm::comm::base::ALL_RD = PO_RD \| SO_RD \| OP_RD , mm::comm::base::PO_WR = 0x0008 , mm::comm::base::SO_WR = 0x0010 , mm::comm::base::OP_WR = 0x0020 , mm::comm::base::ALL_WR = PO_WR \| SO_WR \| OP_WR , mm::comm::base::PO_RDWR = PO_RD \| PO_WR , mm::comm::base::SO_RDWR = SO_RD \| SO_WR , mm::comm::base::OP_RDWR = OP_RD \| OP_WR , mm::comm::base::ALL_RDWR = PO_RDWR \| SO_RDWR \| OP_RDWR , mm::comm::base::RXPDO_MAP = 0x0040 , mm::comm::base::TXPDO_MAP = 0x0080 , mm::comm::base::RXTXPDO_MAP = 0x00C0 , mm::comm::base::BACKUP = 0x0100 , mm::comm::base::STARTUP = 0x0200 , mm::comm::base::ALL_LIST_FLAGS = RXPDO_MAP \| TXPDO_MAP \| BACKUP \| STARTUP }
	Enum class representing various object flags. More...

enum class	mm::comm::base::ObjectDataType : uint16_t { mm::comm::base::UNSPECIFIED = 0x0000 , mm::comm::base::BOOLEAN = 0x0001 , mm::comm::base::BYTE = 0x001E , mm::comm::base::WORD = 0x001F , mm::comm::base::DWORD = 0x0020 , mm::comm::base::BIT1 = 0x0030 , mm::comm::base::BIT2 = 0x0031 , mm::comm::base::BIT3 = 0x0032 , mm::comm::base::BIT4 = 0x0033 , mm::comm::base::BIT5 = 0x0034 , mm::comm::base::BIT6 = 0x0035 , mm::comm::base::BIT7 = 0x0036 , mm::comm::base::BIT8 = 0x0037 , mm::comm::base::BIT9 = 0x0038 , mm::comm::base::BIT10 = 0x0039 , mm::comm::base::BIT11 = 0x003A , mm::comm::base::BIT12 = 0x003B , mm::comm::base::BIT13 = 0x003C , mm::comm::base::BIT14 = 0x003D , mm::comm::base::BIT15 = 0x003E , mm::comm::base::BIT16 = 0x003F , mm::comm::base::BITARR8 = 0x002D , mm::comm::base::BITARR16 = 0x002E , mm::comm::base::BITARR32 = 0x002F , mm::comm::base::INTEGER8 = 0x0002 , mm::comm::base::INTEGER16 = 0x0003 , mm::comm::base::INTEGER24 = 0x0010 , mm::comm::base::INTEGER32 = 0x0004 , mm::comm::base::INTEGER40 = 0x0012 , mm::comm::base::INTEGER48 = 0x0013 , mm::comm::base::INTEGER56 = 0x0014 , mm::comm::base::INTEGER64 = 0x0015 , mm::comm::base::UNSIGNED8 = 0x0005 , mm::comm::base::UNSIGNED16 = 0x0006 , mm::comm::base::UNSIGNED24 = 0x0016 , mm::comm::base::UNSIGNED32 = 0x0007 , mm::comm::base::UNSIGNED40 = 0x0018 , mm::comm::base::UNSIGNED48 = 0x0019 , mm::comm::base::UNSIGNED56 = 0x001A , mm::comm::base::UNSIGNED64 = 0x001B , mm::comm::base::REAL32 = 0x0008 , mm::comm::base::REAL64 = 0x0011 , mm::comm::base::GUID = 0x001D , mm::comm::base::VISIBLE_STRING = 0x0009 , mm::comm::base::OCTET_STRING = 0x000A , mm::comm::base::UNICODE_STRING = 0x000B , mm::comm::base::ARRAY_OF_INT = 0x0260 , mm::comm::base::ARRAY_OF_SINT = 0x0261 , mm::comm::base::ARRAY_OF_DINT = 0x0262 , mm::comm::base::ARRAY_OF_UDINT = 0x0263 , mm::comm::base::PDO_MAPPING = 0x0021 , mm::comm::base::IDENTITY = 0x0023 , mm::comm::base::COMMAND_PAR = 0x0025 , mm::comm::base::PDO_PARAMETER = 0x0027 , mm::comm::base::ENUM = 0x0028 , mm::comm::base::SM_SYNCHRONIZATION , mm::comm::base::RECORD = 0x002A , mm::comm::base::BACKUP_PARAMETER = 0x002B , mm::comm::base::MODULAR_DEVICE_PARAMETER = 0x002C , mm::comm::base::ERROR_SETTING = 0x0281 , mm::comm::base::DIAGNOSIS_HISTORY , mm::comm::base::EXTERNAL_SYNC_STATUS = 0x0283 , mm::comm::base::EXTERNAL_SYNC_SETTINGS = 0x0284 , mm::comm::base::DEFTYPE_FSOEFRAME = 0x0285 , mm::comm::base::DEFTYPE_FSOECOMMPAR , mm::comm::base::TIME_OF_DAY = 0x000C , mm::comm::base::TIME_DIFFERENCE , mm::comm::base::UTYPE_START = 0x0800 , mm::comm::base::UTYPE_END = 0x0FFF }
	Enumerates the supported data types for parameters. More...

enum class	mm::comm::base::ObjectCode : uint16_t { mm::comm::base::DEFTYPE = 0x0005 , mm::comm::base::DEFSTRUCT = 0x0006 , mm::comm::base::VAR = 0x0007 , mm::comm::base::ARRAY = 0x0008 , mm::comm::base::RECORD = 0x0009 }
	Enum class representing different object types used in the EtherCAT protocol. More...

enum class	mm::comm::base::PdoMappingStatus { mm::comm::base::NOT_MAPPED , mm::comm::base::MAPPED_RX_PDO , mm::comm::base::MAPPED_TX_PDO }
	Represents the PDO mapping status of a parameter. More...

enum class	mm::comm::base::DeviceFileError : uint8_t { mm::comm::base::None = 0x00 , mm::comm::base::NotFound = 0x01 , mm::comm::base::AccessDenied = 0x02 , mm::comm::base::StorageFull = 0x03 , mm::comm::base::IllegalRequest = 0x04 , mm::comm::base::PacketNumber = 0x05 , mm::comm::base::AlreadyExists = 0x06 , mm::comm::base::NoUser = 0x07 , mm::comm::base::BootstrapOnly = 0x08 , mm::comm::base::NotBootstrap = 0x09 , mm::comm::base::NoRights = 0x0A , mm::comm::base::ProgramError = 0x0B , mm::comm::base::Busy = 0x0C , mm::comm::base::FilenameLength = 0x0D , mm::comm::base::Timeout = 0x0E , mm::comm::base::FlashBusy = 0x28 , mm::comm::base::SuccessAcknowledgement = 0x58 , mm::comm::base::CommunicationBridgeError = 0x63 , mm::comm::base::EmptyContent = 0xD0 , mm::comm::base::UnexpectedNullTerminator = 0xD1 , mm::comm::base::ZipFailure = 0xD2 , mm::comm::base::UnzipFailure = 0xD3 , mm::comm::base::FlashFailure = 0xD4 , mm::comm::base::WriteFailure = 0xD5 , mm::comm::base::RemoveFailure = 0xD6 , mm::comm::base::Unknown = 0xFF }
	Enumeration of possible device file-related error codes. More...

Functions
void	mm::comm::base::from_json (const nlohmann::json &j, UiPdoMapping &p)
	Deserialize a JSON object into a UiPdoMapping structure. More...

void	mm::comm::base::from_json (const nlohmann::json &j, UiConfigJson &r)
	Deserialize a JSON object into a UiConfigJson structure. More...

bool	mm::comm::base::operator== (uint32_t lhs, EtherCATVendorID rhs)
	Compares a uint32_t value with an EtherCATVendorID enum value. More...

bool	mm::comm::base::operator== (EtherCATVendorID lhs, uint32_t rhs)
	Compares an EtherCATVendorID enum value with a uint32_t value. More...

ObjectFlags	mm::comm::base::operator\| (ObjectFlags lhs, ObjectFlags rhs)
	Bitwise OR operator for ObjectFlags enum class. More...

ObjectFlags	mm::comm::base::operator& (ObjectFlags lhs, ObjectFlags rhs)
	Bitwise AND operator for ObjectFlags enum class. More...

ObjectFlags &	mm::comm::base::operator\|= (ObjectFlags &lhs, ObjectFlags rhs)
	Bitwise OR assignment operator for ObjectFlags enum class. More...

ObjectFlags	mm::comm::base::SetObjectFlags (ObjectFlags b, ObjectFlags s, ObjectFlags p, ObjectFlags a)
	Combine multiple `ObjectFlags` values into one. More...

std::string	mm::comm::base::convertParameterValueToString (const ParameterValue &value)
	Converts a ParameterValue to a string representation. More...

void	mm::comm::base::assignGroupsToParameters (std::vector< Parameter > &parameters)
	Assigns group names to parameters based on their index and subindex. More...

void	mm::comm::base::logParametersMap (const std::unordered_map< Parameter::Address, Parameter > &parametersMap, bool sortParameters=true)
	Logs the contents of a map of parameters with an option to sort them. More...

bool	mm::comm::base::isAppBinFile (const std::string &filename)
	Checks whether a given filename starts with "app_" and ends with ".bin". More...

bool	mm::comm::base::isComBinFile (const std::string &filename)
	Checks whether a given filename starts with "com_" and ends with ".bin". More...

bool	mm::comm::base::isFirmwareBinFile (const std::string &filename)
	Checks whether the given file is a firmware binary file. More...

std::string	mm::comm::base::deviceFileErrorToString (DeviceFileError error)
	Convert a DeviceFileError enum value to a human-readable string. More...

std::vector< std::uint8_t >	mm::comm::base::readCompleteDeviceFile (Device &device, const std::string &filename, const std::chrono::steady_clock::duration expiryTime=std::chrono::milliseconds(20000))
	Reads a file from the device, supporting both complete and multipart zipped files. More...

void	mm::comm::base::writeDeviceFileInOptionalParts (Device &device, const std::string &filename, const std::vector< std::uint8_t > &data, std::function< void(uint8_t, std::string)> progressCallback=nullptr, const std::chrono::steady_clock::duration expiryTime=std::chrono::milliseconds(30000))
	Write a file to a device, splitting it into parts if necessary. More...

void	mm::comm::base::removeDeviceFileOrParts (Device &device, const std::string &filename, const std::chrono::steady_clock::duration expiryTime=std::chrono::milliseconds(20000))
	Removes a file from the device, including handling multipart files if applicable. More...

void	mm::comm::base::writeFirmwarePackage (Device &device, const std::vector< std::uint8_t > &data, const std::vector< std::string > &skipFiles={}, std::function< void(uint8_t, std::string)> progressCallback=nullptr, const std::chrono::steady_clock::duration expiryTime=std::chrono::milliseconds(60000))
	Writes a firmware package to the given device. More...

std::string	mm::comm::base::makeParameterId (int index, int subindex)
	Formats the given index and subindex into a parameter identifier string. More...

void	nlohmann::to_json (nlohmann::json &j, const mm::comm::base::MappedParameterValue &p)
	Serialize MappedParameterValue to JSON. More...

void	nlohmann::from_json (const nlohmann::json &j, mm::comm::base::MappedParameterValue &p)
	Deserialize JSON into MappedParameterValue. More...

void	nlohmann::to_json (json &j, const mm::comm::base::MappedParameterValues &p)
	Serialize MappedParameterValues to JSON. More...

void	nlohmann::from_json (const json &j, mm::comm::base::MappedParameterValues &p)
	Deserialize JSON into MappedParameterValues. More...

Variables
constexpr std::size_t	mm::comm::base::kDeviceFilePartSize
